※各データは多数溶解ポットの平均値です。

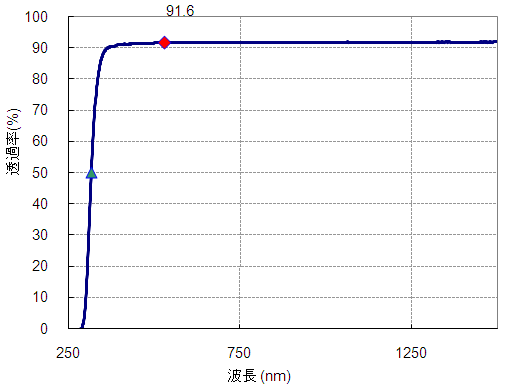

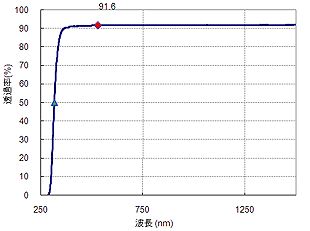

透過率

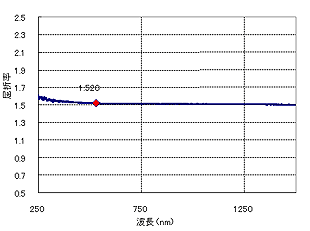

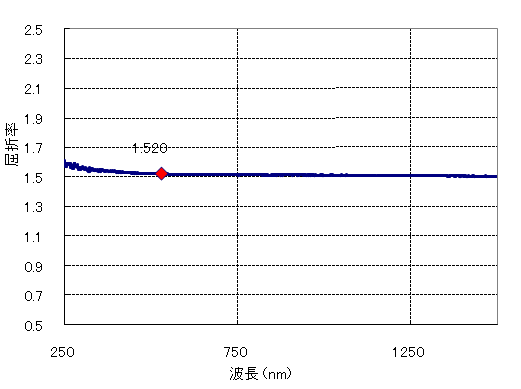

屈折率
| λ(nm) | Ｔ (%) | τ | OD | nm | km | |
|---|---|---|---|---|---|---|
| ◆＜指定波長＞ | 530 | 91.6 | 0.998 | 0.04 | 1.520 | 4.212E-08 |
| ▲＜透過率50%＞ | 315.4 | 50.0 | 0.549 | 0.30 | 1.544 | 6.027E-06 |
| d線(587.56nm) | 587.56 | 91.7 | 0.997 | 0.04 | 1.516 | 5.357E-08 |
| ｅ線(546.07nm) | 546.07 | 91.6 | 0.998 | 0.04 | 1.519 | 4.270E-08 |
| 【記号の意味】 | λ(nm) ：波長 Ｔ (%) ：透過率 | τ ：内部透過率 OD ：光学密度 | nm ：屈折率 km ：消衰係数 |
|---|
| λ(nm) | Ｔ (%) | τ | OD | nm | km |
|---|---|---|---|---|---|
| 250 | 2.4E-04 | 2.7E-06 | 5.61 | 1.595 | 1.020E-04 |
| 260 | 1.7E-04 | 1.9E-06 | 5.77 | 1.585 | 1.090E-04 |
| 270 | 1.4E-04 | 1.5E-06 | 5.87 | 1.572 | 1.152E-04 |
| 280 | 1.0E-03 | 1.1E-05 | 4.99 | 1.571 | 1.015E-04 |
| 290 | 1.2 | 0.013 | 1.91 | 1.551 | 3.979E-05 |
| 300 | 11.6 | 0.128 | 0.94 | 1.569 | 1.965E-05 |
| 310 | 36.1 | 0.398 | 0.44 | 1.561 | 9.081E-06 |
| 320 | 60.4 | 0.666 | 0.22 | 1.560 | 4.146E-06 |
| 330 | 76.3 | 0.839 | 0.12 | 1.552 | 1.850E-06 |
| 340 | 84.4 | 0.925 | 0.07 | 1.541 | 8.465E-07 |
| 350 | 88.1 | 0.966 | 0.05 | 1.544 | 3.882E-07 |
| 360 | 89.7 | 0.983 | 0.05 | 1.544 | 1.930E-07 |
| 370 | 90.3 | 0.989 | 0.04 | 1.542 | 1.318E-07 |
| 380 | 90.4 | 0.989 | 0.04 | 1.537 | 1.385E-07 |
| 390 | 90.8 | 0.993 | 0.04 | 1.533 | 9.062E-08 |
| 400 | 91.1 | 0.995 | 0.04 | 1.532 | 5.988E-08 |
| 410 | 91.2 | 0.996 | 0.04 | 1.530 | 5.658E-08 |
| 420 | 91.2 | 0.995 | 0.04 | 1.529 | 6.738E-08 |
| 430 | 91.2 | 0.995 | 0.04 | 1.528 | 6.710E-08 |
| 440 | 91.2 | 0.995 | 0.04 | 1.528 | 6.530E-08 |
| 450 | 91.3 | 0.996 | 0.04 | 1.526 | 5.489E-08 |
| 460 | 91.3 | 0.996 | 0.04 | 1.526 | 5.691E-08 |
| 470 | 91.4 | 0.997 | 0.04 | 1.525 | 4.421E-08 |
| 480 | 91.5 | 0.997 | 0.04 | 1.521 | 5.235E-08 |
| 490 | 91.5 | 0.997 | 0.04 | 1.522 | 5.070E-08 |
| 500 | 91.5 | 0.997 | 0.04 | 1.521 | 4.672E-08 |
| 510 | 91.6 | 0.997 | 0.04 | 1.521 | 4.538E-08 |
| 520 | 91.6 | 0.997 | 0.04 | 1.520 | 4.519E-08 |
| 530 | 91.6 | 0.998 | 0.04 | 1.520 | 4.212E-08 |
| 540 | 91.6 | 0.997 | 0.04 | 1.519 | 4.730E-08 |
| 550 | 91.7 | 0.998 | 0.04 | 1.518 | 4.148E-08 |
| 560 | 91.7 | 0.998 | 0.04 | 1.518 | 4.202E-08 |
| 570 | 91.7 | 0.998 | 0.04 | 1.517 | 4.486E-08 |
| 580 | 91.7 | 0.997 | 0.04 | 1.517 | 4.644E-08 |
| 590 | 91.6 | 0.997 | 0.04 | 1.516 | 5.522E-08 |
| 600 | 91.7 | 0.997 | 0.04 | 1.516 | 5.460E-08 |
| 610 | 91.7 | 0.997 | 0.04 | 1.515 | 5.954E-08 |
| 620 | 91.7 | 0.997 | 0.04 | 1.516 | 5.859E-08 |
| 630 | 91.7 | 0.997 | 0.04 | 1.515 | 6.430E-08 |
| 640 | 91.7 | 0.997 | 0.04 | 1.515 | 6.298E-08 |
| 650 | 91.7 | 0.997 | 0.04 | 1.515 | 6.462E-08 |
| 660 | 91.7 | 0.997 | 0.04 | 1.515 | 6.268E-08 |
| 670 | 91.7 | 0.997 | 0.04 | 1.514 | 7.175E-08 |
| 680 | 91.7 | 0.997 | 0.04 | 1.515 | 6.275E-08 |
| 690 | 91.7 | 0.997 | 0.04 | 1.514 | 6.842E-08 |
| 700 | 91.7 | 0.997 | 0.04 | 1.513 | 6.508E-08 |
| 710 | 91.7 | 0.997 | 0.04 | 1.513 | 6.197E-08 |
| 720 | 91.7 | 0.997 | 0.04 | 1.514 | 6.665E-08 |
| 730 | 91.7 | 0.997 | 0.04 | 1.514 | 5.972E-08 |
| 740 | 91.7 | 0.997 | 0.04 | 1.513 | 7.381E-08 |
| 750 | 91.7 | 0.997 | 0.04 | 1.513 | 7.611E-08 |
| 800 | 91.7 | 0.997 | 0.04 | 1.513 | 7.069E-08 |
| 850 | 91.7 | 0.998 | 0.04 | 1.514 | 6.456E-08 |
| 900 | 91.7 | 0.997 | 0.04 | 1.517 | 7.677E-08 |
| 1000 | 91.7 | 0.996 | 0.04 | 1.512 | 1.158E-07 |
| 1100 | 91.7 | 0.996 | 0.04 | 1.510 | 1.411E-07 |
| 1200 | 91.7 | 0.996 | 0.04 | 1.508 | 1.572E-07 |
| 1300 | 91.8 | 0.997 | 0.04 | 1.508 | 1.379E-07 |
| 1400 | 91.7 | 0.994 | 0.04 | 1.505 | 2.554E-07 |
| 1500 | 91.9 | 0.996 | 0.04 | 1.503 | 1.908E-07 |
| 1600 | 91.8 | 0.995 | 0.04 | 1.500 | 2.517E-07 |
| 1700 | 91.7 | 0.993 | 0.04 | 1.497 | 3.925E-07 |
| 1800 | 91.4 | 0.989 | 0.04 | 1.494 | 6.558E-07 |
| 1900 | 91.1 | 0.985 | 0.04 | 1.495 | 8.916E-07 |
| 2000 | 90.6 | 0.980 | 0.04 | 1.492 | 1.311E-06 |
データ作成には日立分光光度計U-4100を使用
2009年12月02日更新
