※各データは多数溶解ポットの平均値です。

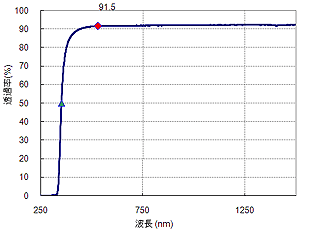

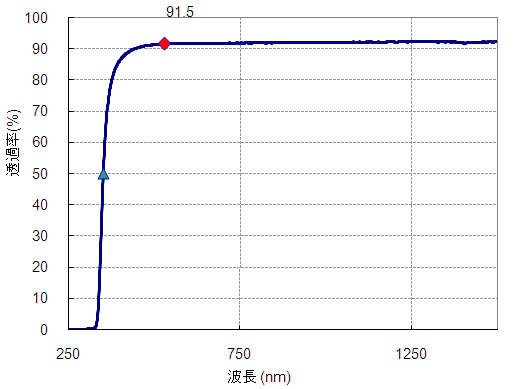

透過率

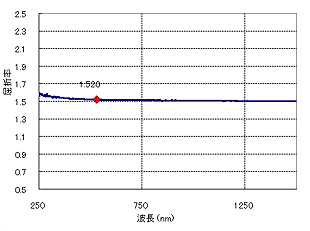

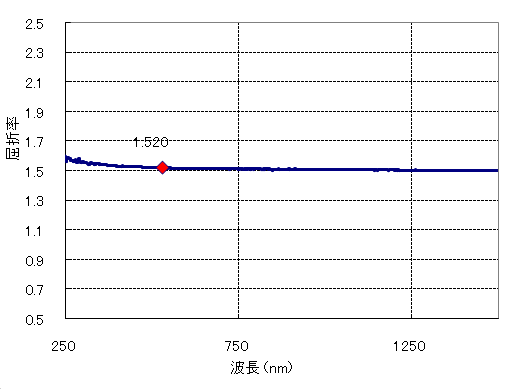

屈折率
| λ(nm) | Ｔ (%) | τ | OD | nm | km | |
|---|---|---|---|---|---|---|
| ◆＜指定波長＞ | 530 | 91.5 | 0.997 | 0.04 | 1.520 | 5.310E-08 |
| ▲＜透過率50%＞ | 350.4 | 50.0 | 0.549 | 0.30 | 1.545 | 6.693E-06 |
| d線(587.56nm) | 587.56 | 91.7 | 0.99 | 8 0.04 | 1.517 | 4.085E-08 |
| ｅ線(546.07nm) | 546.07 | 91.6 | 0.997 | 0.04 | 1.519 | 4.520E-08 |
| 【記号の意味】 | λ(nm) ：波長 Ｔ (%) ：透過率 | τ ：内部透過率 OD ：光学密度 | nm ：屈折率 km ：消衰係数 |
|---|
| λ(nm) | Ｔ (%) | τ | OD | nm | km |
|---|---|---|---|---|---|
| 250 | 0.1 | 9.4E-04 | 3.07 | 1.571 | 5.550E-05 |
| 260 | 0.1 | 8.4E-04 | 3.12 | 1.583 | 5.859E-05 |
| 270 | 0.1 | 8.4E-04 | 3.12 | 1.568 | 6.089E-05 |
| 280 | 0.1 | 0.001 | 3.04 | 1.562 | 6.148E-05 |
| 290 | 0.1 | 0.001 | 2.90 | 1.569 | 6.073E-05 |
| 300 | 0.2 | 0.002 | 2.76 | 1.560 | 5.981E-05 |
| 310 | 0.2 | 0.002 | 2.67 | 1.553 | 5.967E-05 |
| 320 | 0.3 | 0.003 | 2.59 | 1.554 | 5.969E-05 |
| 330 | 1.6 | 0.018 | 1.78 | 1.547 | 4.218E-05 |
| 340 | 18.7 | 0.206 | 0.73 | 1.550 | 1.710E-05 |
| 350 | 49.1 | 0.539 | 0.31 | 1.545 | 6.889E-06 |
| 360 | 68.3 | 0.749 | 0.17 | 1.540 | 3.318E-06 |
| 370 | 77.5 | 0.848 | 0.11 | 1.536 | 1.945E-06 |
| 380 | 82.0 | 0.897 | 0.09 | 1.536 | 1.313E-06 |
| 390 | 84.8 | 0.926 | 0.07 | 1.533 | 9.477E-07 |
| 400 | 86.5 | 0.945 | 0.06 | 1.531 | 7.171E-07 |
| 410 | 87.8 | 0.959 | 0.06 | 1.531 | 5.480E-07 |
| 420 | 88.7 | 0.968 | 0.05 | 1.530 | 4.345E-07 |
| 430 | 89.4 | 0.976 | 0.05 | 1.530 | 3.288E-07 |
| 440 | 89.9 | 0.981 | 0.05 | 1.528 | 2.627E-07 |
| 450 | 90.3 | 0.985 | 0.04 | 1.527 | 2.182E-07 |
| 460 | 90.6 | 0.988 | 0.04 | 1.526 | 1.701E-07 |
| 470 | 90.9 | 0.991 | 0.04 | 1.525 | 1.388E-07 |
| 480 | 91.0 | 0.992 | 0.04 | 1.524 | 1.190E-07 |
| 490 | 91.2 | 0.994 | 0.04 | 1.522 | 9.874E-08 |
| 500 | 91.3 | 0.995 | 0.04 | 1.522 | 8.673E-08 |
| 510 | 91.4 | 0.996 | 0.04 | 1.521 | 7.130E-08 |
| 520 | 91.5 | 0.996 | 0.04 | 1.520 | 6.425E-08 |
| 530 | 91.5 | 0.997 | 0.04 | 1.520 | 5.310E-08 |
| 540 | 91.6 | 0.997 | 0.04 | 1.520 | 4.496E-08 |
| 550 | 91.7 | 0.998 | 0.04 | 1.520 | 3.551E-08 |
| 560 | 91.6 | 0.997 | 0.04 | 1.517 | 4.957E-08 |
| 570 | 91.7 | 0.998 | 0.04 | 1.518 | 3.781E-08 |
| 580 | 91.7 | 0.998 | 0.04 | 1.516 | 3.912E-08 |
| 590 | 91.7 | 0.998 | 0.04 | 1.517 | 4.064E-08 |
| 600 | 91.7 | 0.998 | 0.04 | 1.517 | 4.692E-08 |
| 610 | 91.7 | 0.998 | 0.04 | 1.517 | 4.474E-08 |
| 620 | 91.7 | 0.998 | 0.04 | 1.517 | 3.937E-08 |
| 630 | 91.7 | 0.998 | 0.04 | 1.516 | 4.261E-08 |
| 640 | 91.7 | 0.998 | 0.04 | 1.515 | 4.837E-08 |
| 650 | 91.8 | 0.998 | 0.04 | 1.515 | 4.240E-08 |
| 660 | 91.8 | 0.998 | 0.04 | 1.516 | 3.346E-08 |
| 670 | 91.8 | 0.998 | 0.04 | 1.514 | 5.051E-08 |
| 680 | 91.8 | 0.998 | 0.04 | 1.513 | 5.328E-08 |
| 690 | 91.8 | 0.998 | 0.04 | 1.513 | 4.911E-08 |
| 700 | 91.8 | 0.998 | 0.04 | 1.514 | 3.965E-08 |
| 710 | 91.8 | 0.998 | 0.04 | 1.513 | 5.279E-08 |
| 720 | 91.8 | 0.998 | 0.04 | 1.512 | 4.311E-08 |
| 730 | 91.8 | 0.998 | 0.04 | 1.513 | 4.676E-08 |
| 740 | 91.9 | 0.998 | 0.04 | 1.513 | 3.839E-08 |
| 750 | 91.9 | 0.998 | 0.04 | 1.512 | 4.288E-08 |
| 800 | 91.9 | 0.999 | 0.04 | 1.512 | 3.444E-08 |
| 850 | 92.1 | 0.999 | 0.04 | 1.509 | 5.165E-09 |
| 900 | 92.1 | 0.999 | 0.04 | 1.510 | 2.127E-09 |
| 1000 | 92.1 | 0.999 | 0.04 | 1.509 | 5.070E-09 |
| 1100 | 92.1 | 0.999 | 0.04 | 1.506 | 1.206E-08 |
| 1200 | 92.2 | 0.999 | 0.04 | 1.505 | 9.037E-09 |
| 1300 | 92.2 | 0.999 | 0.04 | 1.503 | 4.920E-09 |
| 1400 | 91.9 | 0.995 | 0.04 | 1.501 | 2.058E-07 |
| 1500 | 92.3 | 0.999 | 0.03 | 1.500 | 1.183E-08 |
| 1600 | 92.3 | 0.999 | 0.03 | 1.499 | 1.637E-08 |
| 1700 | 92.2 | 0.999 | 0.04 | 1.497 | 7.192E-08 |
| 1800 | 92.1 | 0.997 | 0.04 | 1.497 | 1.580E-07 |
| 1900 | 92.1 | 0.996 | 0.04 | 1.494 | 2.391E-07 |
| 2000 | 91.9 | 0.994 | 0.04 | 1.491 | 3.956E-07 |
データ作成には日立分光光度計U-4100を使用
2009年12月02日更新
